Aquatica Fusion Lineare Spa by Marc Sadler (240V/60Hz)

Fusion Lineare spa 03 (web) (web)

Aquatica Fusion Lineare Spa by Marc Sadler (240V/60Hz)

Fusion is an innovative new world-class spa series designed by renowned international designer Marc Saddler, manufactured by Gruppo Treesse in EU and adapted to US electrical and plumbing standards by Aquatica Plumbing Group Inc. Aquatica is proud to be the exclusive US distributor of this innovative spa bath series. The Fusion series of spas from Aquatica take the spa experience to a whole new level; now you not only enjoy the ultimate spa pleasure with your friends or family in the comfort of your home. By purchasing the high-tech Fusion spa from Aquatica, you purchase the ultimate item of luxury and opulence that will be envy to anybody visiting your home. The incredible innovation behind the Fusion range has made possible a whole new system of invisible hydromassage, incorporated into spas that are absolutely seamless in design with no external outlets or jets. The Fusion Lineare’s infinitely balanced full rectangular design means you can now luxuriate in the truly seamless comfort of a spa without edges, which incorporates all the beauty and clean lines of the Fusion pool. Beautiful to look at, but more importantly, superbly therapeutic in its delivery of revitalisating and soothing pleasure from the microjets and air bolsters concealed within the walls. New Standards in Pleasure This marriage of comfort, pleasure and rejuvenation are further added to by the colour therapy system which allows you to select from a range of colours to enhance your mood, the water temperature stabiliser and recirculation system for optimum water temperature and the concealed, handheld shower unit. Form and function are at one in this wonderful new spa from Aquatica. All you could ask for and much, much more. Among the unique characteristics of the Fusion hydromassage bathtub and spa series is the distinctive, overflowing Infinity style rim, creating a seemingly edgeless water surface, as well as the concealed therapy system, which is installed inside a thin cavity located in the inner perimeter of the tub. 12 x whirlpool jets 3 x 2” electronically controlled electrical membrane drain outlets 1” Automatic hidden filling valve Dual Action Ozone and UV-C disinfection system Multi-bed swimming pool sand filtration system 3 kW heater with temperature control Optional stainless steel heat exchanger installation for external heating source Chromotherapy with multiple perimeter LEDs for infinity edge Designed for comfortable two person bathing Maximum water capacity - 520 Litres 10 year limited warranty on the bathtub shell 2 year limited warranty for Wellness System components

Aquatica

USD 22189.00 2030-01-01
Fusion 627722006280 Fusion-Lineare-Spa
5 5 1 1
Aquatica
1 5 5
Aquatica Fusion Lineare Spa by Marc Sadler (240V/60Hz) - the best choice I have ever made.
Aquatica Fusion Lineare Spa by Marc Sadler (240V/60Hz)

Aquatica Fusion Lineare Spa by Marc Sadler (240V/60Hz)

Review this item
body position 3d3D Body Position

Key Features

Unique design 50 (web)
Unique Design
1 Customized product 50 2 (web)
Can Be Customized
8 Heated bathtub (web)
Heated
5 Suitable for Outdoor usage (web)
Suitable for Outdoors
9 Air massage (web)
Air Massage
10 Turbo Pro water massage (web)
Turbo Pro Massage
12 Multicolored chromotherapy (web)
LED Lights
13 Capacitive Glass Keypad (web)
Capacitive Keypad

Product Details

General parameters

Exterior dimensions (in) 86.5 L x 47.25 W x 26.25 H
Depth to overflow drain (in) 17.75
Product weight (lb) 331
Water capacity (gallons) 137
Shape Rectangular
Product material DurateX
Installation type Built in
Warranty 10 Year Limited Warranty on the bathtub shell

Other parameters

Collection name Fusion
SKU Fusion-Lineare-Spa
Country where manufactured EU
Product color White
Surface finish High Gloss
Drain placement Center
Assembly required No

Interior parameters

Interior depth (in) 17.75
Interior length top (in) 66.25
Interior width bottom (in) 26.75
Interior width top (in) 26.75

Package parameters

Shipping weight (lb) 496
Number of boxes 1

Electrical power requirements

Electrical standards 240V/60Hz
Required electrical voltage 240V/60Hz
Electrical circuit breakers 20A GFCI Protected
Circuits required 1 Single Circuit
Show more
Shipping Information
Lead Time
Request
Shipping Cost
$899
Return
30 days
Not Available

This product is

Inspire Design logo

Product Modifications

Fusion Lineare Panels
Aquatica Professional Services - a service you can trust
This item is noncancelable and nonreturnable

Out of Stock

Get 10% off on additional products...Read more

Fusion is an innovative new world-class spa series designed by renowned international designer Marc Saddler, manufactured by Gruppo Treesse in EU and adapted to US electrical and plumbing standards by Aquatica Plumbing Group Inc. Aquatica is proud to be the exclusive US distributor of this innovative spa bath series.

The Fusion series of spas from Aquatica take the spa experience to a whole new level; now you not only enjoy the ultimate spa pleasure with your friends or family in the comfort of your home. By purchasing the high-tech Fusion spa from Aquatica, you purchase the ultimate item of luxury and opulence that will be envy to anybody visiting your home.

The incredible innovation behind the Fusion range has made possible a whole new system of invisible hydromassage, incorporated into spas that are absolutely seamless in design with no external outlets or jets.

Show more

The Fusion Lineare’s infinitely balanced full rectangular design means you can now luxuriate in the truly seamless comfort of a spa without edges, which incorporates all the beauty and clean lines of the Fusion pool. Beautiful to look at, but more importantly, superbly therapeutic in its delivery of revitalisating and soothing pleasure from the microjets and air bolsters concealed within the walls.

New Standards in Pleasure

This marriage of comfort, pleasure and rejuvenation are further added to by the colour therapy system which allows you to select from a range of colours to enhance your mood, the water temperature stabiliser and recirculation system for optimum water temperature and the concealed, handheld shower unit. Form and function are at one in this wonderful new spa from Aquatica. All you could ask for and much, much more.

Among the unique characteristics of the Fusion hydromassage bathtub and spa series is the distinctive, overflowing Infinity style rim, creating a seemingly edgeless water surface, as well as the concealed therapy system, which is installed inside a thin cavity located in the inner perimeter of the tub.

  • 12 x whirlpool jets
  • 3 x 2” electronically controlled electrical membrane drain outlets
  • 1” Automatic hidden filling valve
  • Dual Action Ozone and UV-C disinfection system
  • Multi-bed swimming pool sand filtration system
  • 3 kW heater with temperature control
  • Optional stainless steel heat exchanger installation for external heating source
  • Chromotherapy with multiple perimeter LEDs for infinity edge
  • Designed for comfortable two person bathing
  • Maximum water capacity - 520 Litres
  • 10 year limited warranty on the bathtub shell
  • 2 year limited warranty for Wellness System components
Unique infinity style overflow system
Unique infinity style overflow system
The Fusion hydrorelax bathtubs and spas have been designed to overflow continuousely while heating the water in the process and create tranquile-relaxing atmosphere enhanced by unique light therapy shows.
Unique infinity style overflow system

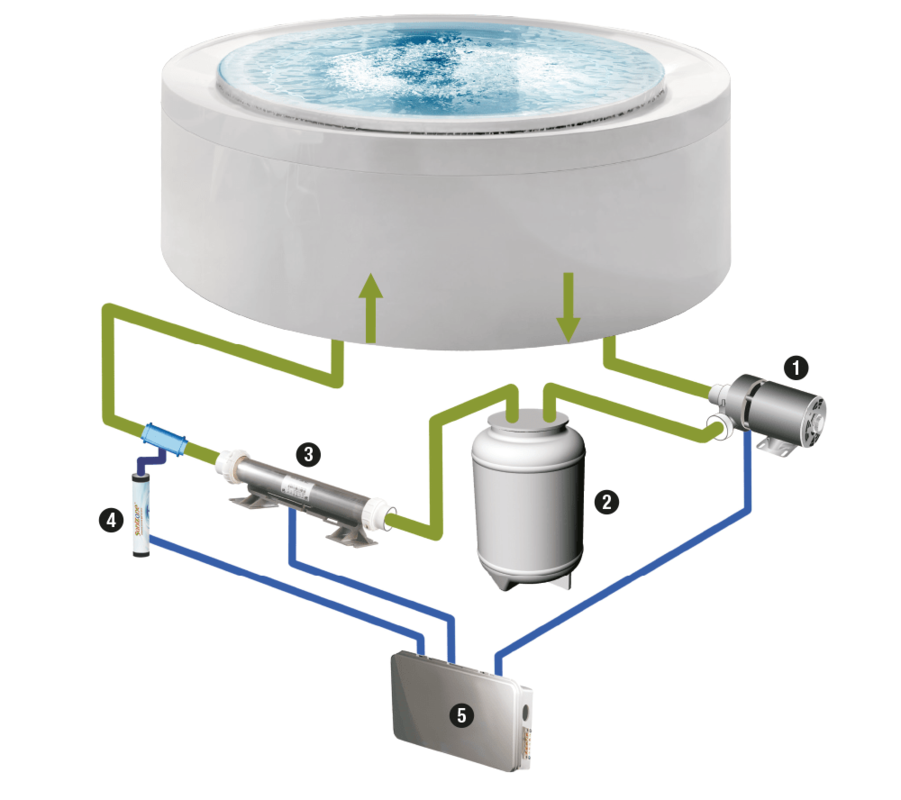

Suitable for residential and light commercial use
Suitable for residential and light commercial use
The Fusion spas are supplied with advanced spa pack for light commercial or outdoor spa (hot tub) application where emptying the bathtub after every use is not practical. It includes sand filter and UV-C disinfection system.
Suitable for residential and light commercial use
Optional Integrated Bluetooth Audio
Optional Integrated Bluetooth Audio
Designed to deliver clean, crisp, rich sound in the high-fidelity rendition expected by music lovers, Aquatica Audio Station features Class D amplifier technology to enhance your bathroom audio experience. Delivering 300W peak at low distortion, our audio station features high-quality audio transducers and a built-in subwoofer with integrated digital filter and adjustable volume.
Bluetooth 360x220
Swimming pool sand filter for low-maintenance
Swimming pool sand filter for low-maintenance
In order to keep the water clean and clear, Aquatica has opted to install a multi-bed swimming pool sand filtration system in the Fusion, Zen and Rest indoor/outdoor spas. Mechanical cleaning takes place via the sand filter, which filters out particles down to about 25 µm (thousandths of a millimeter). The Aquatica central spa controller and valve on the filter tank controls the water flow through the filter. The filter is 2/3 filled with filter sand, grain size 0.6-0.8 mm. As the dirt accumulates in the filter, the backpressure increases and is read off electronically in the central spa controller, which then initiates a backwash of the sand filter.
sand filter hayward 2 (web)
Powerful high quality subwoofer
Powerful high quality subwoofer
With a 6-inch, high power cylindrical subwoofer, Fusion hydrorelax bathtubs and spas provide you with that missing low-end in your favorite tracks that you cannot get from various mobile Bluetooth speakers so often used in bathrooms.
Powerful high quality subwoofer
Optional high-efficiency heat exchanger installation
Optional high-efficiency heat exchanger installation
Would you like to heat your outdoor spa or bathtub with high-efficiency heat exchanger connected to your solar boiler, heat pump or another type of high-efficiency external water heating system? If so, Aquatica carries a selection of various high-efficiency heat exchangers including plate heat exchangers, smooth coiled tubing and bolted plate heat exchangers, which all feature high energy efficiency at low pressure loss, and are made of stainless steel AISI 316.
heat exchanger installation (web)
Pneumatic bathtub and spa elevator
Pneumatic bathtub and spa elevator
Make it easy to maintain and service your built-in therapy bathtubs and spas with our new pneumatic elevator. The tub elevator is an essential element for handling large and heavy therapy bathtubs and spas: it is perfectly integrated into the tub can be operated by a common air compressor (e.g. vehicle, light commercial or recreational air compressor). The elevator gently lifts and lowers the bathtub or spa, allowing for an easy access to all the control elements and plumbing components that are normally difficult to access in built-in bathtubs.
Automatic bathtub elevator 5
Dual action water sanitization system
Dual action water sanitization system
Our Fusion hydrorelax bathtubs and spas are equipped with a unique dual ozone and UV-C water sanitizing system in one compact and simple system. When used in a spa application, this innovative solution significantly reduces residual chlorine or bromine consumption and delivers a healthier and more enjoyable spa experience.
Dual water sanitization system 200x200 (web)
Built-in antifreeze protection
Built-in antifreeze protection
Our Zen, Rest and Fusion series spas feature built-in electronic anti-freeze protection. The spa electronic control system will activate heating and circulation as soon as it detects that the water temperature has dropped below +10C (+50F) and will then maintain the water temperature at this level. Note – in cold climate zones, the optional hot-tub lid must be used to provide additional thermal protection.
Antifreeze protection web
Minimalistic & trully invisible hydromassage system that no competition can match
Minimalistic & trully invisible hydromassage system that no competition can match
Tired of seeing ugly jets sticking out of bath surface? The Fusion bathtub’s hydromassage micro jets are made of stainless steel and installed along the inner perimeter of a thin inside cavity – a truly distinctive and very innovative design feature of the Infinity bathtub line.
Minimalistic and trully invisible hydromassage system that no competition can (web)
Electronic draining and filling
Electronic draining and filling
Exclusive to our bathtubs – Fusion hydrorelax bathtubs and spas are equipped with three 2” state-of-the-art high-throughput electronic draining valves that ensure fast draining of the bathtub and compensation tanks. Activate fast draining by simply pressing a single button. Similarly – initiate the bathtub filling via the jets by a simple single button press.
Electronic draining and filling (web)
Duratex material

DurateX™ is a light-weight fiberglass composite material suitable for manufacturing indoor-outdoor bathtubs and spa tubs.

Combining DurateX™ technology with state-of-the-art gel coats provides a high-gloss surface finish. The material’s high density and lack of porousness makes it durable and crack-resistant, despite many years of intensive use. DurateX™ boasts exceptional UV, blush, chemical & blister resistance (bromine and chlorine water) and can withstand water and temperature variations.

  • Environmental Friendliness

    Environmental Friendliness

  • Longevity

    Longevity

  • Durability

    Extremely Durable

  • Hygienic

    Easy To Clean

  • Thermal Resistance

    Thermal Insulation

  • Premium Texture

    Premium Texture

Virtual Bathtub-Seater

Experience our sophisticated, functional, and convenient 3D Body Position App! It will allow you to create a personalized avatar to test our bathtubs and spas for seating comfort. Enter your gender, body type, weight, and other personal body parameters to test our products, and choose the most optimal model for your needs. The "Fill Water" function allows you to see the depth of the bathwater in relation to your body. You can even create several avatars for different people simultaneously. That way you can try a bathtub not only for yourself but also for your spouse, partner, friend or children.
Fusion Lineare Bathtub and Spa 3D Body Position

Product Details

General parameters

Exterior dimensions (in) 86.5 L x 47.25 W x 26.25 H
Depth to overflow drain (in) 17.75
Product weight (lb) 331
Water capacity (gallons) 137
Shape Rectangular
Product material DurateX
Installation type Built in
Warranty 10 Year Limited Warranty on the bathtub shell

Other parameters

Collection name Fusion
Sku Fusion-Lineare-Spa
Country where manufactured EU
Product color White
Surface finish High Gloss
Drain placement Center
Assembly required No

Interior parameters

Interior depth (in) 17.75
Interior length top (in) 66.25
Interior width bottom (in) 26.75
Interior width top (in) 26.75

Package parameters

Shipping weight (lb) 496
Number of boxes 1

Electrical power requirements

Electrical standards 240V/60Hz
Required electrical voltage 240V/60Hz
Electrical circuit breakers 20A GFCI Protected
Circuits required 1 Single Circuit
