Fusion is an innovative new world-class spa series designed by renowned international designer Marc Saddler, manufactured by Gruppo Treesse in EU and adapted to US electrical and plumbing standards by Aquatica Plumbing Group Inc. Aquatica is proud to be the exclusive US distributor of this innovative spa bath series.

The Fusion series of spas from Aquatica take the spa experience to a whole new level; now you not only enjoy the ultimate spa pleasure with your friends or family in the comfort of your home. By purchasing the high-tech Fusion spa from Aquatica, you purchase the ultimate item of luxury and opulence that will be envy to anybody visiting your home.

The incredible innovation behind the Fusion range has made possible a whole new system of invisible hydromassage, incorporated into spas that are absolutely seamless in design with no external outlets or jets.

The Fusion Rondo’s infinitely balanced full circle design means you can now luxuriate in the truly seamless comfort of a spa without edges, which incorporates all the beauty and clean lines of the Fusion pool. Beautiful to look at, but more importantly, superbly therapeutic in its delivery of revitalisating and soothing pleasure from the microjets and air bolsters concealed within the walls.

New Standards in Pleasure

This marriage of comfort, pleasure and rejuvenation are further added to by the colour therapy system which allows you to select from a range of colours to enhance your mood, the water temperature stabiliser and recirculation system for optimum water temperature and the concealed, handheld shower unit. Form and function are at one in this wonderful new spa from Aquatica. All you could ask for and much, much more.

Among the unique characteristics of the Fusion hydromassage bathtub and spa series is the distinctive, overflowing Infinity style rim, creating a seemingly edgeless water surface, as well as the concealed therapy system, which is installed inside a thin cavity located in the inner perimeter of the tub.

18 x whirlpool jets
3 x 2” electronically controlled electrical membrane drain outlets
1” Automatic hidden filling valve
Dual Action Ozone and UV-C disinfection system
Multi-bed swimming pool sand filtration system
3 kW heater with temperature control
Chromotherapy with multiple perimeter LEDs for infinity edge
Designed for comfortable two person bathing
Maximum water capacity - 660 Litres
Optional stainless steel heat exchanger installation for external heating source
10 year limited warranty on the bathtub shell
2 year limited warranty for Wellness System components

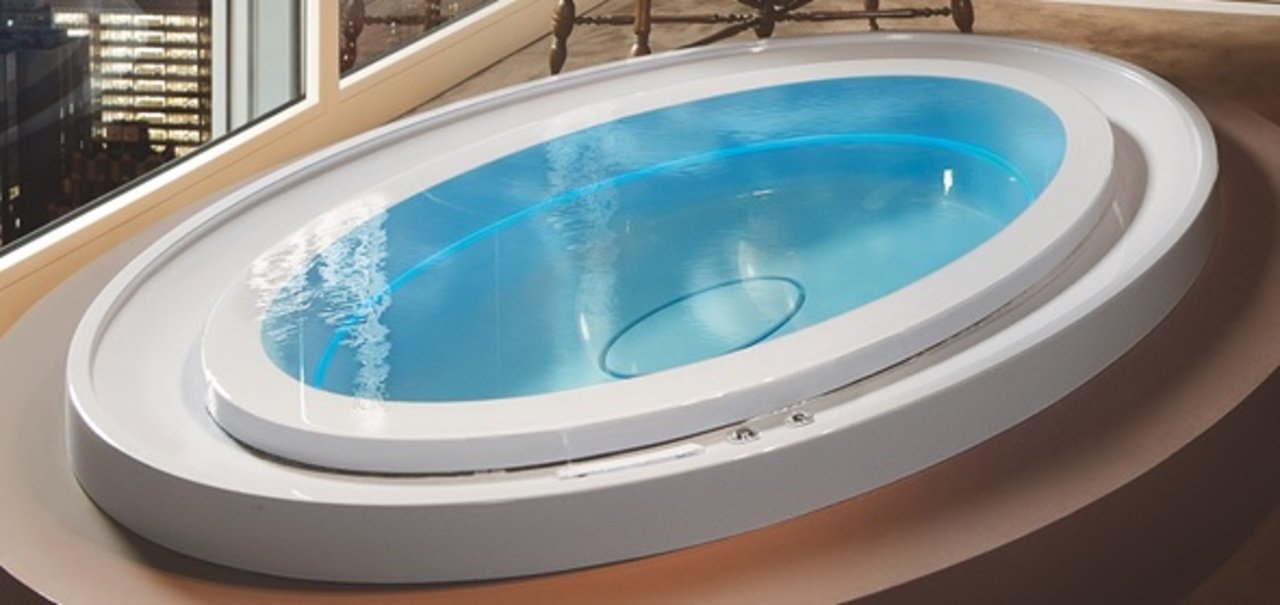

Innovative and truly distinctive design

All the Fusion hardware is concealed. There are no visible faucets while the drain outlet and overflow is designed without any intrusive holes on the tub’s inner surface.

Unique infinity style overflow system

The Fusion hydrorelax bathtubs and spas have been designed to overflow continuousely while heating the water in the process and create tranquile-relaxing atmosphere enhanced by unique light therapy shows.

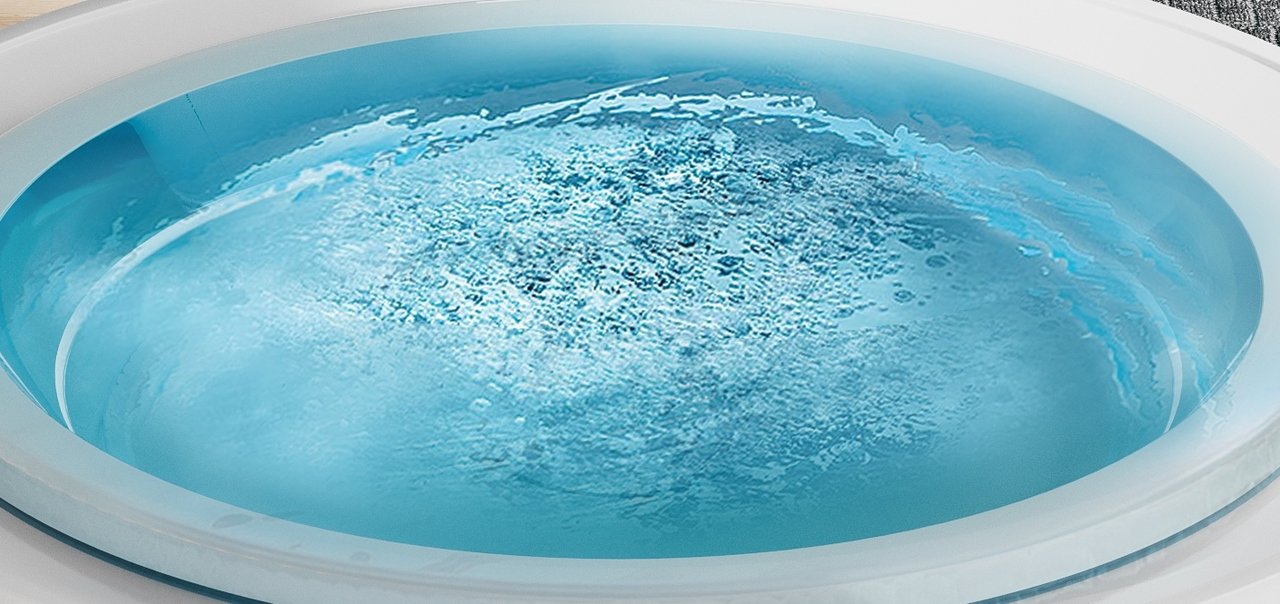

Air-assist hydromassage system

Air is injected into the hydro massage system to achieve a more pleasurable massage effect.

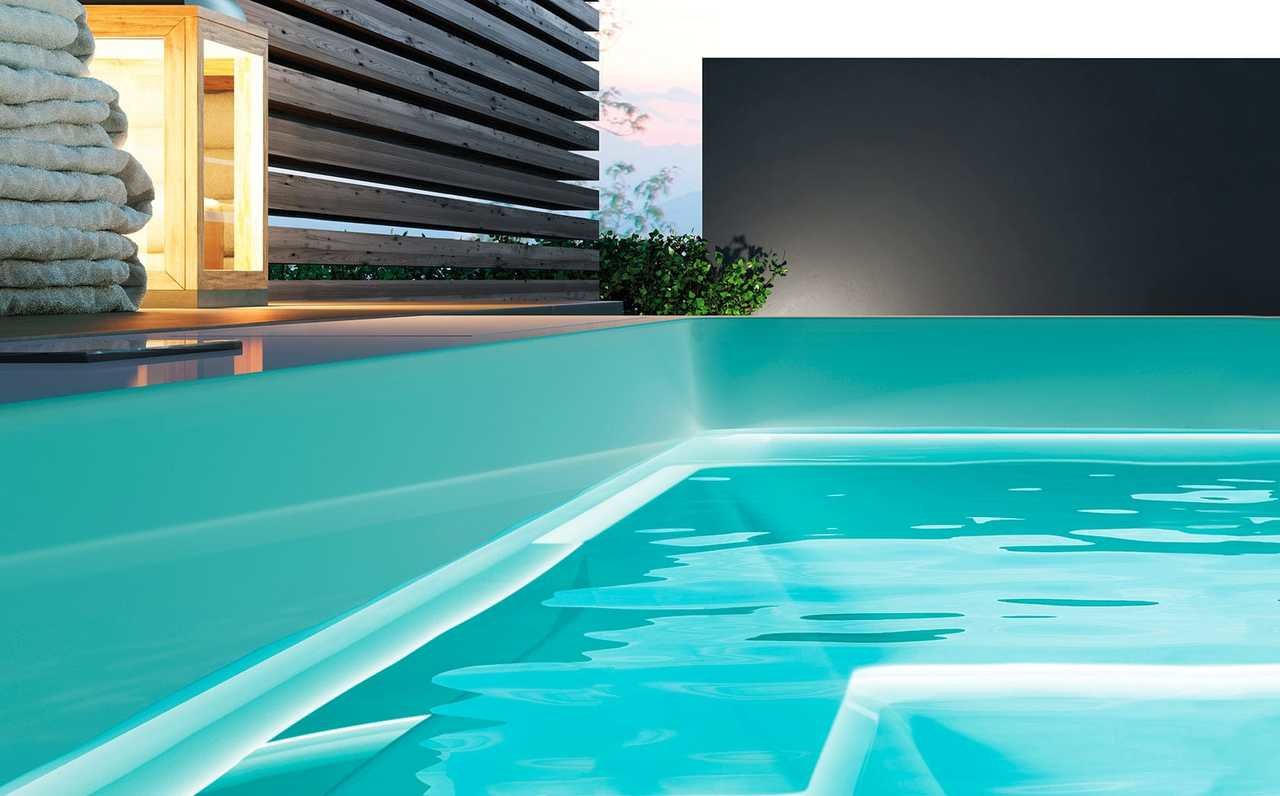

Relaxing, soul and mind smoothing chromotherapy

Light shines from all around the bath perimeter - this creates a blade of light that “magically” animates the water swirl from the hidden nozzles. The concealed underwater chromotherapy system is designed to provide an unparalleled light therapy effect.

Temperature control and recirculation

Aquatica Fusion Rondo HydroRelax Jetted OutdoorIndoor Bathtub US version 240V 60Hz 05 (web)

Temperature control and recirculation

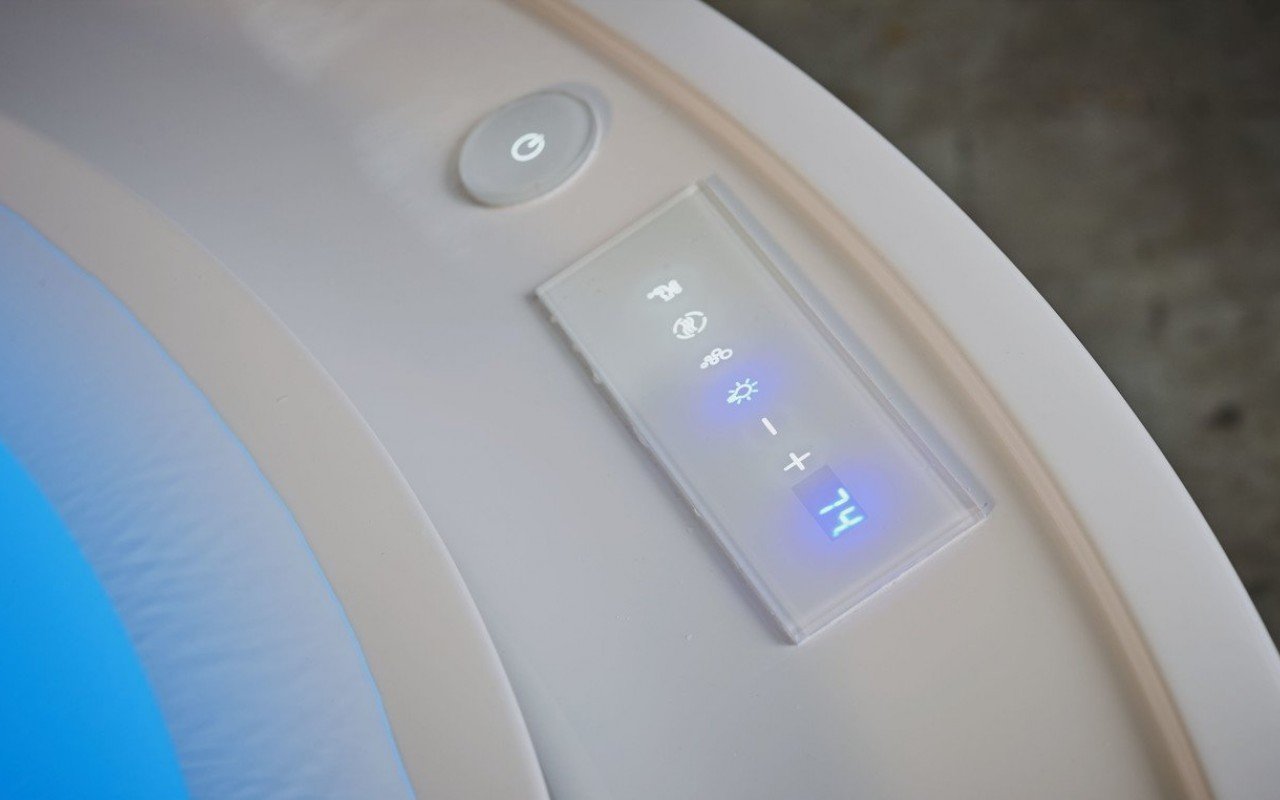

The Fusion line hydrorelax bathtubs and spas feature advanced bath controller with water recirculation, temperature control and modern capacitive glass keypad.

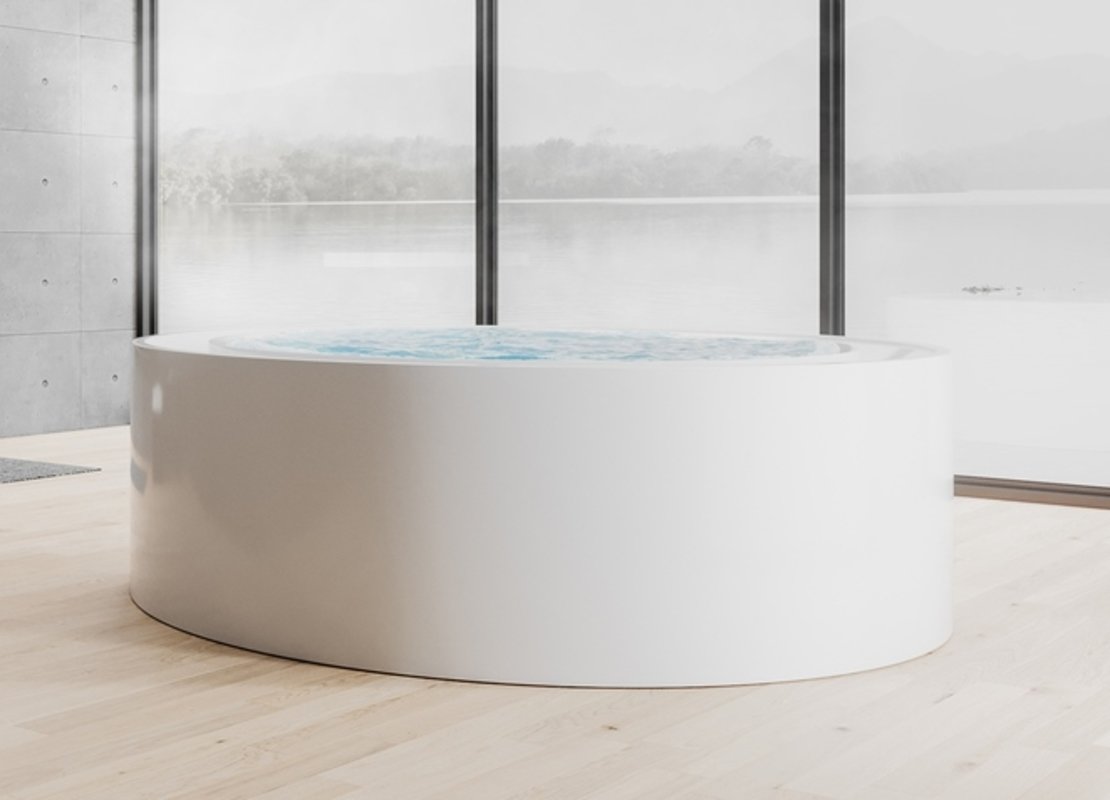

Suitable for indoor and outdoor use

The advanced composite material from which the Fusion line is made, allows for both indoor and outdoor use under any climate.

Suitable for residential and light commercial use

The Fusion spas are supplied with advanced spa pack for light commercial or outdoor spa (hot tub) application where emptying the bathtub after every use is not practical. It includes sand filter and UV-C disinfection system.

Integrated Bluetooth Audio

Integrated Bluetooth Audio

Designed to deliver clean, crisp, rich sound in the high-fidelity rendition expected by music lovers, Aquatica Audio Station features Class D amplifier technology to enhance your bathroom audio experience. Delivering 300W peak at low distortion, our audio station features high-quality audio transducers and a built-in subwoofer with integrated digital filter and adjustable volume.

Swimming pool sand filter for low-maintenance

Swimming pool sand filter for low-maintenance

In order to keep the water clean and clear, Aquatica has opted to install a multi-bed swimming pool sand filtration system in the Fusion, Zen and Rest indoor/outdoor spas. Mechanical cleaning takes place via the sand filter, which filters out particles down to about 25 µm (thousandths of a millimeter). The Aquatica central spa controller and valve on the filter tank controls the water flow through the filter. The filter is 2/3 filled with filter sand, grain size 0.6-0.8 mm. As the dirt accumulates in the filter, the backpressure increases and is read off electronically in the central spa controller, which then initiates a backwash of the sand filter.

Powerful high quality subwoofer

With a 6-inch, high power cylindrical subwoofer, Fusion hydrorelax bathtubs and spas provide you with that missing low-end in your favorite tracks that you cannot get from various mobile Bluetooth speakers so often used in bathrooms.

Optional high-efficiency heat exchanger installation

Optional high-efficiency heat exchanger installation

Would you like to heat your outdoor spa or bathtub with high-efficiency heat exchanger connected to your solar boiler, heat pump or another type of high-efficiency external water heating system? If so, Aquatica carries a selection of various high-efficiency heat exchangers including plate heat exchangers, smooth coiled tubing and bolted plate heat exchangers, which all feature high energy efficiency at low pressure loss, and are made of stainless steel AISI 316.

Pneumatic bathtub and spa elevator

Pneumatic bathtub and spa elevator

Make it easy to maintain and service your built-in therapy bathtubs and spas with our new pneumatic elevator. The tub elevator is an essential element for handling large and heavy therapy bathtubs and spas: it is perfectly integrated into the tub can be operated by a common air compressor (e.g. vehicle, light commercial or recreational air compressor). The elevator gently lifts and lowers the bathtub or spa, allowing for an easy access to all the control elements and plumbing components that are normally difficult to access in built-in bathtubs.

Dual action water sanitization system

Dual water sanitization system 200x200 (web)

Dual action water sanitization system

Our Fusion hydrorelax bathtubs and spas are equipped with a unique dual ozone and UV-C water sanitizing system in one compact and simple system. When used in a spa application, this innovative solution significantly reduces residual chlorine or bromine consumption and delivers a healthier and more enjoyable spa experience.

Built-in antifreeze protection

Built-in antifreeze protection

Our Zen, Rest and Fusion series spas feature built-in electronic anti-freeze protection. The spa electronic control system will activate heating and circulation as soon as it detects that the water temperature has dropped below +10C (+50F) and will then maintain the water temperature at this level. Note – in cold climate zones, the optional hot-tub lid must be used to provide additional thermal protection.

Minimalistic & trully invisible hydromassage system that no competition can match

Minimalistic and trully invisible hydromassage system that no competition can (web)

Minimalistic & trully invisible hydromassage system that no competition can match

Tired of seeing ugly jets sticking out of bath surface? The Fusion bathtub’s hydromassage micro jets are made of stainless steel and installed along the inner perimeter of a thin inside cavity – a truly distinctive and very innovative design feature of the Infinity bathtub line.

Electronic draining and filling

Exclusive to our bathtubs – Fusion hydrorelax bathtubs and spas are equipped with three 2” state-of-the-art high-throughput electronic draining valves that ensure fast draining of the bathtub and compensation tanks. Activate fast draining by simply pressing a single button. Similarly – initiate the bathtub filling via the jets by a simple single button press.

Sustaining and energizing chromotherapy effect

Fusion HydroRelax Jetted Outdoor Indoor Bathtub Chromotherapy (web)

Sustaining and energizing chromotherapy effect

Chromotherapy is thought to balance and harmonize energy in the body through the use of light in the form of color. Each color has a role in this process, working on different organs of the body and spiritual functions, which correlates to the East Indian concept of the seven major energy centers or chakras. The Fusion’s chromotherapy color palate includes all seven rainbow hues - red, orange and yellow to green, blue, indigo, violet and white, which gently and continuously rotate through their spectrum for a sustaining and energizing effect on the whole body.

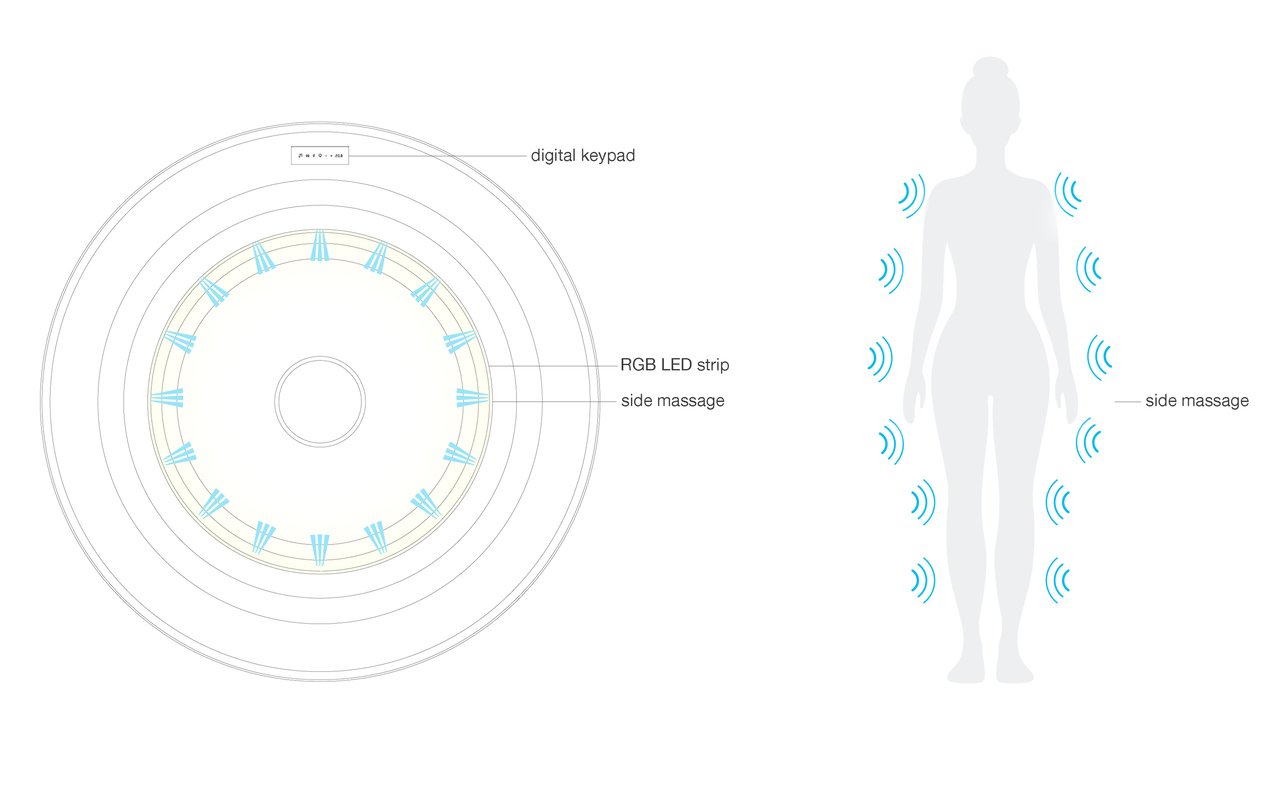

Fusion Rondo hydromassage system layout & control (240V/60Hz)

Fusion Rondo hydromassage system layout & control (240V/60Hz)

Virtual Bathtub-Seater

3d Body Position App

Experience our sophisticated, functional, and convenient 3D Body Position App! It will allow you to create a personalized avatar to test our bathtubs and spas for seating comfort. Enter your gender, body type, weight, and other personal body parameters to test our products, and choose the most optimal model for your needs. The "Fill Water" function allows you to see the depth of the bathwater in relation to your body. You can even create several avatars for different people simultaneously. That way you can try a bathtub not only for yourself but also for your spouse, partner, friend or children.

Fusion Rondo Bathtub and Spa 3D Body Position

Product Details

General parameters

Exterior dimensions (in)	78.75 L x 78.75 W x 26 H
Product weight (lb)	408
Water capacity (gallons)	172
Shape	Round
Product material	DurateX™
Installation type	Built in
Warranty	10 Year Limited Warranty on the bathtub shell

Other parameters

Collection name	Fusion
Country where manufactured	EU
Product color	White
Surface finish	High Gloss
Drain placement	Center
Assembly required	No

Interior parameters

Interior depth (in)	18
Interior length bottom (in)	40.5
Interior length top (in)	55
Interior width bottom (in)	40.5
Interior width top (in)	55

Package parameters

Shipping weight (lb)	728
Number of boxes	1

Electrical power requirements

Electrical standards	240V/60Hz
Required electrical voltage	240V/60Hz
Electrical circuit breakers	20A GFCI Protected
Circuits required	1 Single Circuit
